Strong-Motion Tools (smt) module

The Strong-Motion Tools module contains code for the selection of ground-motion prediction equations (GMPEs) and the subsequent development of a ground-motion characterisation (GMC).

The main components of the Strong-Motion Tools (smt) comprise of (1) parsing capabilities to generate metadata (2) capabilities for computation and plotting of ground-motion residual distributions (3) comparison of potentially viable GMPEs and (4) development of the GMC with the final selection(s) of GMPEs.

Please note that this documentation assumes an elementary knowledge of GMPEs, residual analysis and ground-motion characterisation. Therefore, this documentation’s purpose is to facilitate the application of the smt by user who is already familiar with the underlying theory. References are provided throughout for useful overviews of such theory.

Performing a Residual Analysis

The smt provides capabilities (parsers) for the parsing of an inputted dataset into metadata for the performing of a residual analysis, so as to evaluate GMPE performance against the inputted dataset.

The inputted dataset usually comprises of a ground-motion record flatfile. Many seismological institutions provide flatfiles of processed ground-motion records. These flatfiles often slightly differ in format, but generally follow a template of a CSV file in which each row represents a single ground-motion record, that is, a recording of the observed ground-motion at a single station. Each record contains information for (1) the associated earthquake (e.g. moment magnitude, hypocentral location, focal depth), (2) the associated site parameters (e.g. shear-wave velocity in the upper 30m of a site (Vs30)) and (3) ground-motion intensity values for various intensity measures (e.g. peak-ground acceleration (PGA), peak-ground velocity (PGV), spectral acceleration (SA) for various spectral ordinates).

Within a residual analysis, the information provided in each ground-motion record is used to evaluate how closely a selection of GMPEs predict the observed ground-motion. The ground-motion records within a flatfile considered in a residual analysis will usually consist of earthquakes from the same region and of the same tectonic region type.

When computing the expected ground-motions by each GMPE, the SMT leverages the OpenQuake Engine’s capabilities to construct a finite rupture for each event from the available information for each earthquake, from which the distance types required for each GMPE (e.g. rjb, rrup) can be computed relative to each site (i.e. station) in the flatfile if missing for the given record. NOTE: The distance metrics in the flatfile will inherently be the result of a different finite rupture from that modelled within OpenQuake Engine for distance metric computation - if the user requires complete consistency between the considered distance metrics, the user can just remove all distance metrics provided apriori within the inputted flatfile/ground-motion database to ensure all of the metrics are computed using OpenQuake Engine instead.

Parsers are provided in the smt for the most widely used flatfile formats (e.g. ESM, NGAWest2). The currently available parsers within the smt module can be found in oq-mbtk\openquake\smt\residuals\parsers. Some of the parsers here can read in non-flatfile format ground-motion databases - e.g. the ASADatabaseMetadataReader (found in oq-mbtk\openquake\smt\residuals\parsers\asa_database_parser) can be used to parse ASA format files to construct an equivalent ground-motion database.

In this example, we will consider the ESM (Engineering Strong-Motion database) 2018 format parser for the parsing of a subset of the ESM 2018 flatfile comprising of active shallow crustal earthquakes from Albania and the surrounding regions. The example residual analysis considered here consequently focuses on identifying the most appropriate GMPEs for predicting ground-motions generated from active shallow crustal earthquakes in Albania.

Parsing a Ground-Motion Flatfile into Metadata

Herein we provide a brief description of the various steps for the parsing of the ESM18 example flatfile. Note that we use the symbol > as the prompt in a terminal throughout the smt documentation, hence every time you find some code starting with this symbol this indicates a command you must type in your terminal.

  1. First we must import the ESMFlatfileParser and the required python modules for managing the output directories:

    > # Import required python modules
    > import os
    > import shutil
    > from openquake.smt.residuals.parsers.esm_flatfile_parser import ESMFlatfileParser

  2. Next we need to specify the base path, the flatfile location and the output location:

    > # Specify base path
    > DATA = os.path.abspath('')
    >
    > # Specify flatfile location
    > flatfile_directory = os.path.join(DATA, 'demo_flatfile.csv')
    >
    > # Specify metadata output location
    > output_database = os.path.join(DATA, 'metadata')
    >
    > # If the metadata already exists first remove
    > if os.path.exists(output_database):
    >     shutil.rmtree(output_database)

  3. Now we can parse the metadata from the ESM 2018 flatfile using the ESMFlatfileParser with the autobuild class method:

    > # Specify metadata database ID and metadata database name:
    > DB_ID = '000'
    > DB_NAME = 'ESM18_Albania'
    >
    > # Parse flatfile
    > parser = ESMFlatfileParser.autobuild(DB_ID, DB_NAME, output_database, flatfile_directory)

  4. The flatfile will now be parsed by the ESMFlatfileParser, and a pickle (.pkl) file of the metadata (the parsed ground-motion database) will be outputted in the specified output location. We can now use this metadata to perform a GMPE residual analysis.

Computing the Ground-Motion Residuals

Following the parsing of a flatfile into a pickled ground-motion database object, we can now specify the inputs for the performing of a residual analysis. Residual analysis compares the predicted and expected (i.e. observed) ground-motion for a combination of source, site and path parameters to evaluate the performance of GMPEs. Residuals are computed using the mixed effects methodology of Abrahamson and Youngs (1992), in which the total residual is split into an inter-event component and an intra-event component. Abrahamson and Youngs (1992) should be consulted for a detailed overview of ground-motion residuals.

We can specify the inputs to perform a residual analysis with as follows:

  1. Specify the base path, the path to the metadata we parsed in the previous stage and an output folder:

    > # Specify absolute path
    > DATA = os.path.abspath('')
    >
    > # Specify metadata directory
    > metadata_directory = os.path.join(DATA, 'metadata')
    >
    > # Specify output folder
    > run_folder = os.path.join(DATA, results_preliminary)

  2. We can specify the GMPEs we want to evaluate, and the intensity measures we want to evaluate each GMPE for as a gmpe_list and an imt_list within the command line:

    > # Specify some GMPEs and intensity measures within command line
    > gmpe_list = ['AbrahamsonEtAl2014', 'AkkarEtAlRjb2014', 'BooreEtAl2014', 'BooreEtAl2020', 'CauzziEtAl2014', 'CampbellBozorgnia2014', 'ChiouYoungs2014', 'KothaEtAl2020', 'LanzanoEtAl2019_RJB_OMO']
    > imt_list = ['PGA','SA(0.1)', 'SA(0.2)', 'SA(0.5)', 'SA(1.0)']

  3. We can also specify the GMPEs and intensity measures within a .toml file. The .toml file method is required for the use of GMPEs with user-specifiable input parameters.

    The additional input parameters which are specifiable for certain GMPEs are available within their corresponding GMPE modules (the .py GMM files found in oq-engine\openquake\hazardlib\gsim). The capabilties of ModifiableGMPE are primarily contained within oq-engine\openquake\hazardlib\gsim\mgmpe\modifiable_gmpe.py.

    The .toml file for specifying GMPEs and intensity measures to consider within a residual analysis should be specified as follows:

     [models.AbrahamsonEtAl2014]

     [models.AkkarEtAlRjb2014]

     [models.BooreEtAl2014]

     [models.BooreEtAl2020]

     [models.CauzziEtAl2014]

     [models.CampbellBozorgnia2014]

     [models.ChiouYoungs2014]

     [models.KothaEtAl2020]

     [models.LanzanoEtAl2019_RJB_OMO]

    # Examples below of some GMPEs not considered in this residual analysis with additional
    # parameters than be specified within a toml file

    [models.AbrahamsonGulerce2020SInter]
    region = "CAS" # GMPE specific parameters

    [models.NGAEastGMPE]
    gmpe_table = 'NGAEast_FRANKEL_J15.hdf5' # use a gmpe table

    [imts]
    imt_list = ['PGA', 'SA(0.1)', 'SA(0.2)', 'SA(0.5)', 'SA(1.0)']

  4. Following specification of the GMPEs and intensity measures, we can now compute the ground-motion residuals using the Residuals module.

    We first need to get the metadata from the parsed .pkl file (stored within the metadata folder):

    > # Import required python modules
    > import pickle
    > import openquake.smt.residuals.gmpe_residuals as res
    > import openquake.smt.residuals.residual_plotter as rspl
    >
    > # Create path to metadata file
    > metadata = os.path.join(metadata_directory, 'metadatafile.pkl')
    >
    > # Load metadata
    > sm_database = pickle.load(open(metadata, "rb"))
    >
    > # If the output folder already exists delete, then create output folder
    > if os.path.exists(run_folder):
    >    shutil.rmtree(run_folder)
    > os.mkdir(run_folder)

  5. Now we compute the residuals using the specified GMPEs and intensity measures for the metadata we have parsed from the flatfile:

    Note that here resid is the residuals object which stores (1) the observed ground-motions and associated metadata from the parsed flatfile, (2) the corresponding predicted ground-motion per GMPE and (3) the computed residual components per GMPE per intensity measure. The residuals object also stores the gmpe_list (e.g. resid.gmpe_list) and the imt_list (resid.imts) if these inputs are specified within a .toml file.

    > # Compute residuals using GMPEs and intensity measures specified in command line
    > comp='Geometric' # Use the geometric mean of H1 and H2 as the observed values to compare against the GMPE predictions
    > resid = res.Residuals(gmpe_list, imt_list)
    > resid.compute_residuals(sm_database, component="Geometric") # horizontal component definition can also be set to 'rotD50', rotD00','rotD100' etc
    >
    > # OR compute residuals using GMPEs and intensity measures specified in .toml file
    > filename = os.path.join(DATA,'gmpes_and_imts_to_test.toml') # path to .toml file
    > resid = res.Residuals.from_toml(filename)
    > resid.compute_residuals(sm_database)
    >
    > # We can export the residuals to an excel (one sheet per event)
    > out_loc = os.path.join(run_folder, f"residuals_hrz_comp_def_of_{comp}.xlsx")
    > resid.export_residuals(out_loc)


Plotting of Residuals

  1. Now we have computed the residuals, we can generate various basic plots describing the residual distribution.

    We can generate plots of the probability density function plots (for total, inter- and intra-event residuals), which compare the computed residual distribution to a standard normal distribution.

    Note that filename (position 3 argument in rspl.ResidualPlot) should specify the output directory and filename for the generated figure in each instance.

    Probability density function plots can be generated as follows:

    > # If using .toml for inputs we first create equivalent gmpe_list and imt_list using residuals object attributes
    > gmpe_list = {}
    > for idx, gmpe in enumerate(resid.gmpe_list):
    >    gmpe_list[idx] = resid.gmpe_list[gmpe]
    > gmpe_list = list[gmpe_list]
    >
    > imt_list = {}
    > for idx, imt in enumerate(resid.imts):
    >    imt_list[idx] = resid.imt_list[imt]
    > imt_list = list(imt_list)
    >
    > # Plot residual probability density function for a specified GMPE from gmpe_list and intensity measure from imt_list
    > rspl.ResidualPlot(resid, gmpe_list[5], imt_list[0], filename, filetype = 'jpg') # Plot for gmpe in position 5
                                                                                       # in gmpe_list and intensity
                                                                                       # measure in position 0 in imt_list

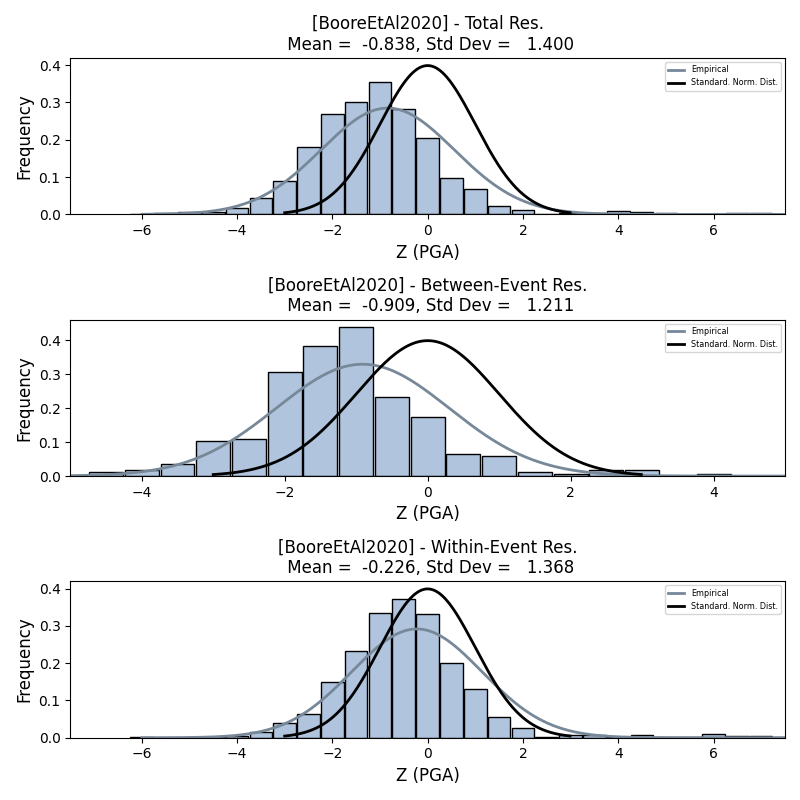

Residual distribution plot for Boore et al. 2020 and PGA:
../_images/%5BBooreEtAl2020%5D_PGA_bias%2Bsigma.jpeg

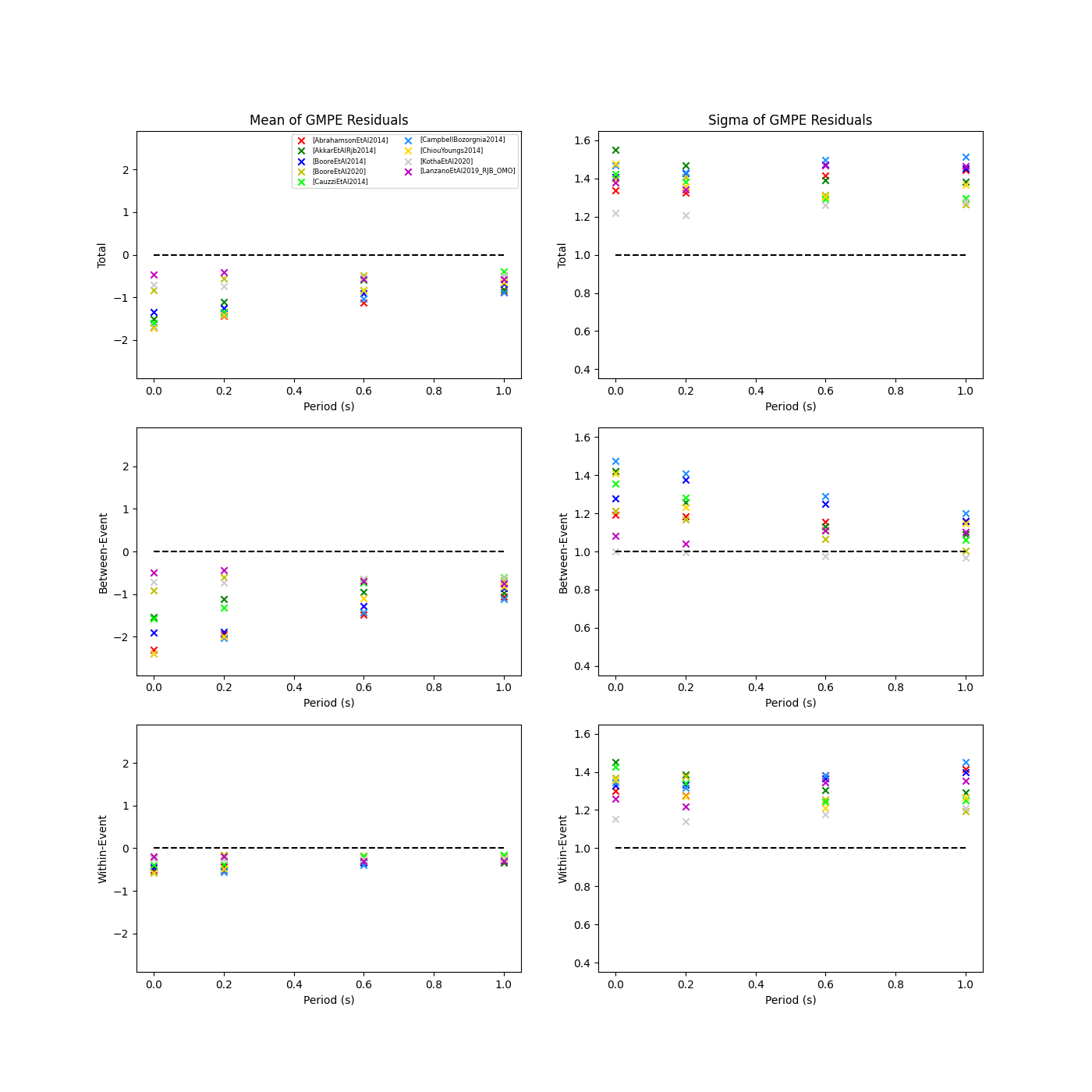

  1. We can also plot the probability density functions over all considered spectral periods at once, so as to better examine how the residual distributions vary per GMPE over each spectral period:

    > # Plot residual probability density functions over spectral periods:
    > rspl.PlotResidualPDFWithSpectralPeriod(resid, filename)
    >
    > # Generate CSV of residual probability density function per IMT per GMPE
    > rspl.PDFTable(resid, filename)

Plot of residual distributions versus spectral acceleration:
../_images/all_gmpes_PDF_vs_imt_plot.jpg
  1. Plots for residual trends (again for total, inter- and intra-event components) with respect to the most important GMPE inputs can also be generated in a similar manner. Here we will demonstrate for magnitude:

    > # Plot residuals w.r.t. magnitude from gmpe_list and imt_list
    > rspl.ResidualWithMagnitude(resid, gmpe_list[5], imt_list[0], filename, filetype = 'jpg')

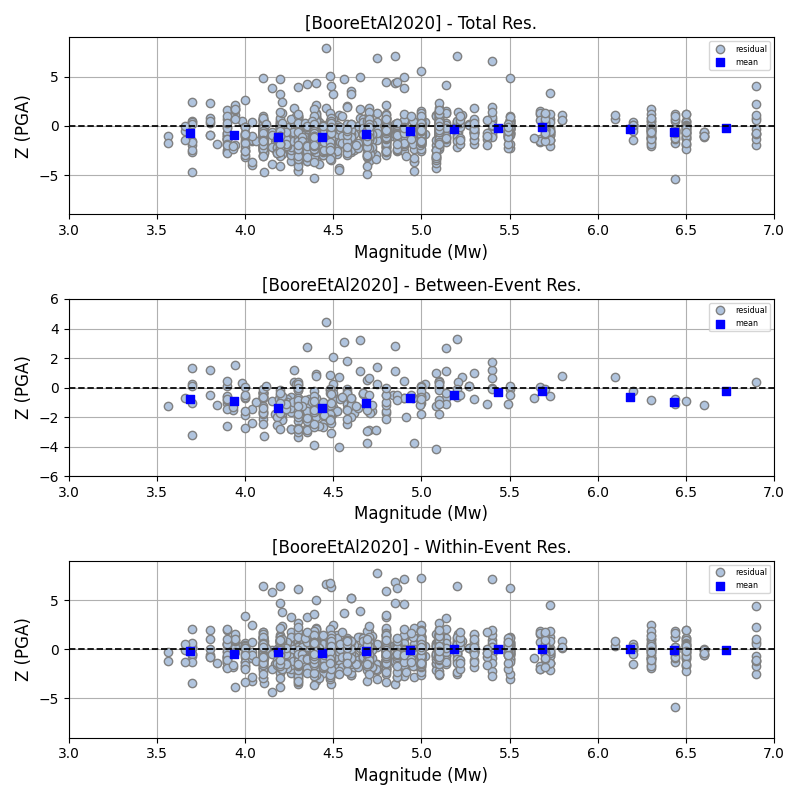

    Residuals w.r.t. magnitude for Boore et al. 2020 and PGA:
    ../_images/%5BBooreEtAl2020%5D_PGA_wrt_mag.jpeg
  2. The functions for plotting of residuals w.r.t. distance, focal depth and Vs30 are called in a similar manner:

    > # From gmpe_list and imt_list:
    > rspl.ResidualWithDistance(resid, gmpe_list[5], imt_list[0], filename, filetype = 'jpg')
    > rspl.ResidualWithDepth(resid, gmpe_list[5], imt_list[0],  filename, filetype = 'jpg')
    > rspl.ResidualWithVs30(resid, gmpe_list[5], imt_list[0],  filename, filetype = 'jpg')

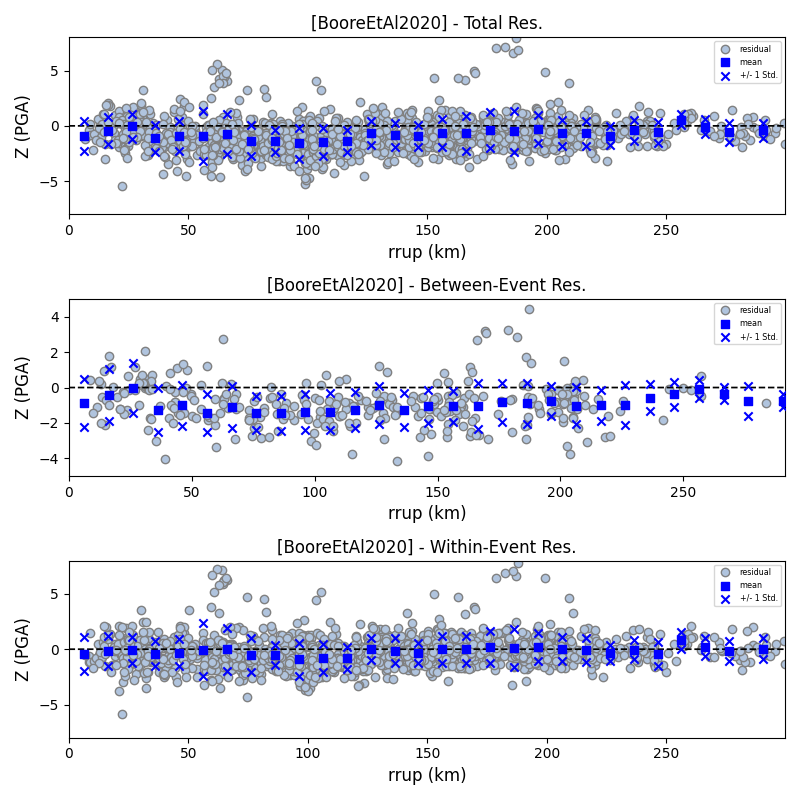

    Residuals w.r.t. distance for Boore et al. 2020 and PGA:
    ../_images/%5BBooreEtAl2020%5D_PGA_wrt_dist.jpeg
    Residuals w.r.t. depth for Boore et al. 2020 and PGA:
    ../_images/%5BBooreEtAl2020%5D_PGA_wrt_depth.jpeg
    Residuals w.r.t. Vs30 for Boore et al. 2020 and PGA:
    ../_images/%5BBooreEtAl2020%5D_PGA_wrt_vs30.jpeg

Single Station Residual Analysis

  1. The smt’s residuals module also offers capabilities for performing single station residual analysis (SSA).

    We can first specify a threshold for the minimum number of records each site must have to be considered in the SSA:

    > # Import SMT functions required for SSA
    > from openquake.smt.strong_motion_selector import rank_sites_by_record_count
    >
    > # Specify threshold for min. num. records
    > threshold = 20
    >
    > # Get the sites meeting threshold (for same parsed database as above!)
    > top_sites = rank_sites_by_record_count(sm_database, threshold)

  2. Following selection of sites using a threshold value, we can perform the SSA.

    We can compute the non-normalised intra-event residual per record associated with the selected sites \(\delta W_{es}\), the mean average (again non-normalised) intra-event residual per site \(\delta S2S_S\) and a residual variability \(\delta W_{o,es}\) (which is computed per record by subtracting the site-average intra-event residual from the corresponding inter-event residual). For more details on these intra-event residual components please consult Rodriguez-Marek et al. (2011), which is referenced repeatedly throughout the following section.

    The standard deviation of all \(\delta W_{es}\) values should in theory exactly equal the standard deviation of the GMPE’s intra-event standard deviation.

    The \(\delta S2S_S\) term is characteristic of each site, and should equal 0 with a standard deviation of \(\phi_{S2S}\). A non-zero value for \(\delta S2S_S\) is indicative of a bias in the prediction of the observed ground-motions at the considered site.

    Finally, the standard deviation of the \(\delta W_{o,es}\) term (\(\phi_{SS}\)) is representative of the single-station standard deviation of the GMPE, and is an estimate of the non-ergodic standard deviation of the model.

    As previously, we can specify the GMPEs and intensity measures to compute the residuals per site for using either a GMPE list and intensity measure list, or from a .toml file.

    > # Create SingleStationAnalysis object from gmpe_list and imt_list
    > ssa1 = res.SingleStationAnalysis(top_sites.keys(), gmpe_list, imt_list)
    >
    > # OR create SingleStationAnalysis object from .toml
    > filename = os.path.join(DATA, 'SSA_inputs.toml') # path to input .toml
    > ssa1 = res.SingleStationAnalysis.from_toml(top_sites.keys(), filename)
    >
    > Get the total, inter-event and intra-event residuals for each site
    > ssa1.get_site_residuals(sm_database)
    >
    > Get single station residual statistics for each site and export to CSV
    > csv_output = os.path.join(DATA, 'SSA_statistics.csv')
    > ssa1.residual_statistics(True, csv_output)

  3. We can plot the computed residual statistics as follows:

    > # First plot (normalised) total, inter-event and intra-event residuals for each site
    > rspl.ResidualWithSite(ssa1, gmpe_list[0], imt_list[2], filename, filetype = 'jpg')
    >
    > # Then plot non-normalised intra-event per site, average intra-event per site and residual variability per site
    > rspl.IntraEventResidualWithSite(ssa1, gmpe_list[0], imt_list[2], filename, filetype = 'jpg')

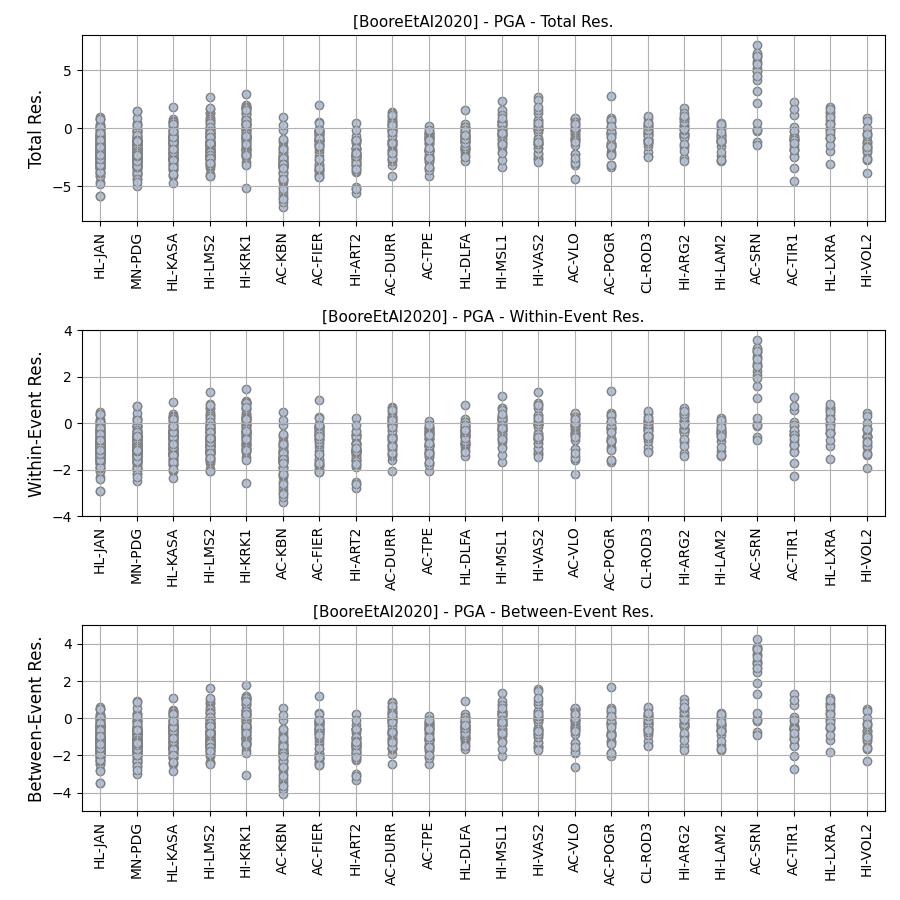

    Normalised residuals per considered site for Boore et al. 2020 and PGA:
    ../_images/%5BBooreEtAl2020%5D_PGA_AllResPerSite.jpg

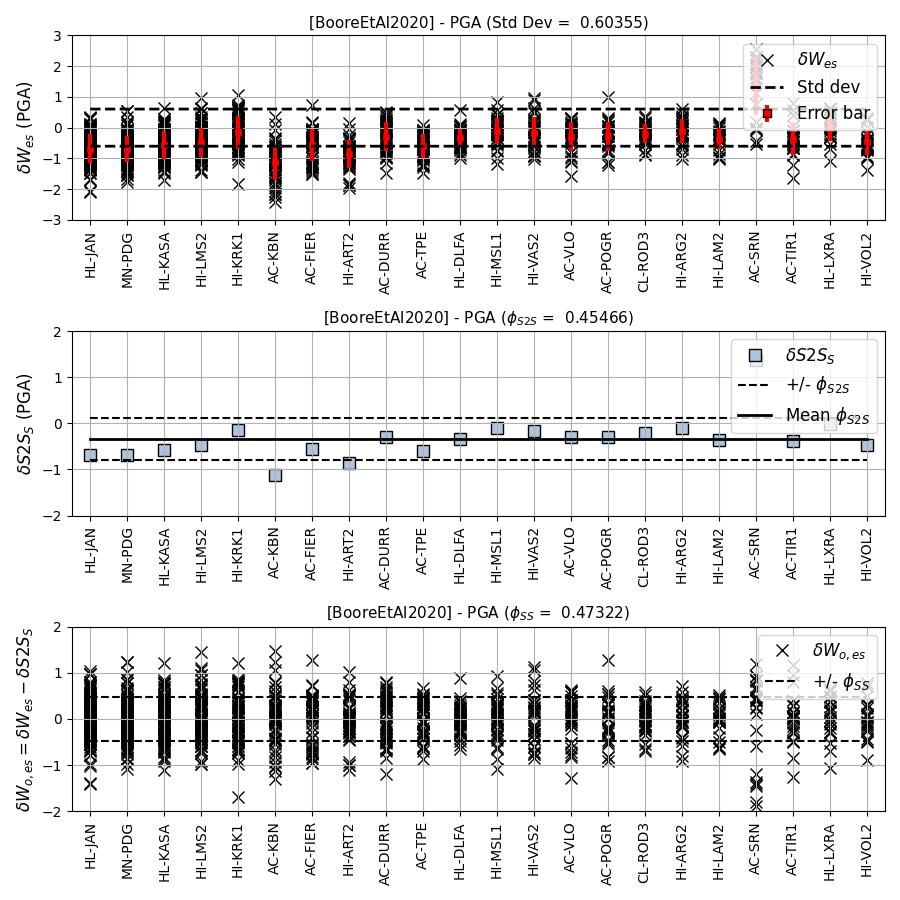

    Intra-event residuals components per considered site for Boore et al. 2020 and PGA:
    ../_images/%5BBooreEtAl2020%5D_PGA_IntraResCompPerSite.jpg

GMPE Performance Ranking Metrics

The smt contains implementations of several published GMPE ranking methodologies, which allow additional inferences to be drawn from the computed residual distributions. Brief summaries of each ranking metric are provided here, but the corresponding publications should be consulted for more information.

The Likelihood Method (Scherbaum et al. 2004)

The Likelihood method is used to assess the overall goodness of fit for a model (GMPE) to the dataset (observed) ground-motions. This method considers the probability that the absolute value of a random sample from a normalised residual distribution falls into the interval between the modulus of a particular observation and infinity. The likelihood value should equal 1 for an observation of 0 (i.e. the mean of the normalised residual distribution) and should approach zero for observations further away from the mean. Consequently, if the GMPE exactly matches the observed ground-motions, then the likelihood of a particular observation should be distributed evenly between 0 and 1, with a median value of 0.5

Histograms of the likelihood values per GMPE per intensity measure can be plotted as follows:

> # From gmpe_list and imt_list:
> rspl.LikelihoodPlot(resid, gmpe_list[5], imt_list[0], filename, filetype = 'jpg')
Likelihood plot for Boore et al. 2020 and PGA:
../_images/%5BBooreEtAl2020%5D_PGA_likelihood.jpeg

The Loglikelihood Method (Scherbaum et al. 2009)

The loglikelihood method is used to assess information loss between GMPEs compared to the unknown “true” model. The comparison of information loss per GMPE compared to this true model is represented by the corresponding ground-motion residuals. A GMPE with a lower LLH value provides a better fit to the observed ground-motions (less information loss occurs when using the GMPE). It should be noted that LLH is a comparative measure (i.e. the LLH values have no physical meaning), and therefore LLH is only of use to evaluate two or more GMPEs.

LLH values per GMPE aggregated over all (specified) intensity measures, LLH-based model weights and LLH per intensity measure can be computed as follows:

> # Get LLH values from gmpe_list and imt_list (both aggregated over IMTs and per IMT)
> llh, model_weights, model_weights_with_imt = res.get_loglikelihood_values(resid, imt_list)
>
> # OR from .toml:
> llh, model_weights, model_weights_with_imt = res.get_loglikelihood_values(resid, resid.imts)
>
> # Generate a CSV table of LLH values per GMPE and per IMT
> rspl.loglikelihood_table(resid, filename)
>
> # Generate a CSV table of LLH-based model weights for GMPE logic tree
> rspl.llh_weights_table(resid, filename)
>
> # Plot LLH values per GMPE vs IMT
> rspl.plot_loglikelihood_with_spectral_period(resid, filename)

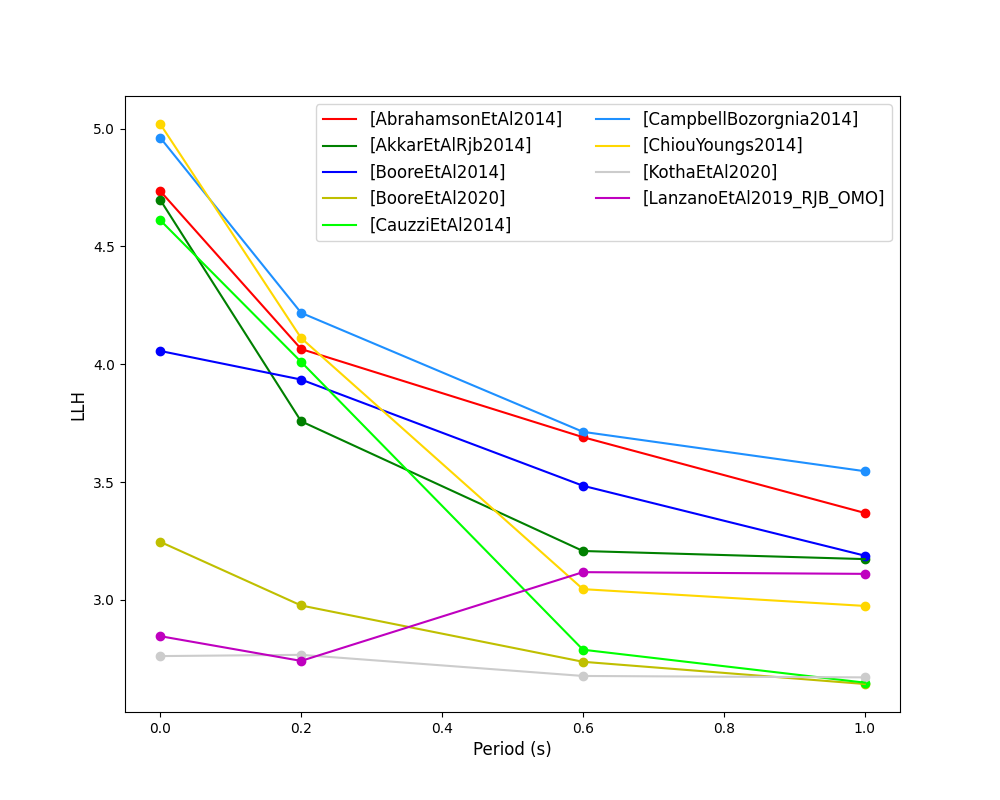

Loglikelihood versus spectral period plot for considered GMPEs:
../_images/all_gmpes_LLH_plot.jpg

Euclidean Distance Based Ranking (Kale and Akkar, 2013)

The Euclidean distance based ranking (EDR) method considers the probability that the absolute difference between an observed ground-motion and a predicted ground-motion is less than a specific estimate, and is repeated over a discrete set of such estimates (one set per observed ground-motion per GMPE per the specified intensity measure). The total occurrence probability for such a set is the modified Euclidean distance (MDE). The corresponding EDR value is computed by summing the MDE (one per observation), normalising by the number of observations and then introducing an additional parameter (Kappa) to penalise models displaying a larger predictive bias (here kappa is equal to the ratio of the Euclidean distance between obs. and pred. median ground-motion to the Euclidean distance between the obs. and pred. median ground-motion corrected by a predictive model derived from a linear regression of the observed data - the parameter sqrt(kappa) therefore provides the performance of the median prediction per GMPE).

EDR score, the normal distribution of modified Euclidean distance (MDE Norm) and sqrt(k) (k is used henceforth to represent the median predicted ground-motion correction factor “Kappa” within the original methodology) per GMPE aggregated over all considered intensity measures, or per intensity measure can be computed as follows:

> # Get EDR, MDE Norm and MDE per GMPE aggregated over all IMTs
> res.get_edr_values(resid)
>
> # Get EDR, MDE Norm and MDE per GMPE per IMT
> res.get_edr_values_wrt_spectral_period(resid)
>
> # Generate a CSV table of EDR values per GMPE and per IMT
> rspl.edr_table(resid, filename)
>
> # Generate a CSV table of EDR-based model weights for GMPE logic tree
> rspl.edr_weights_table(resid, filename)
>

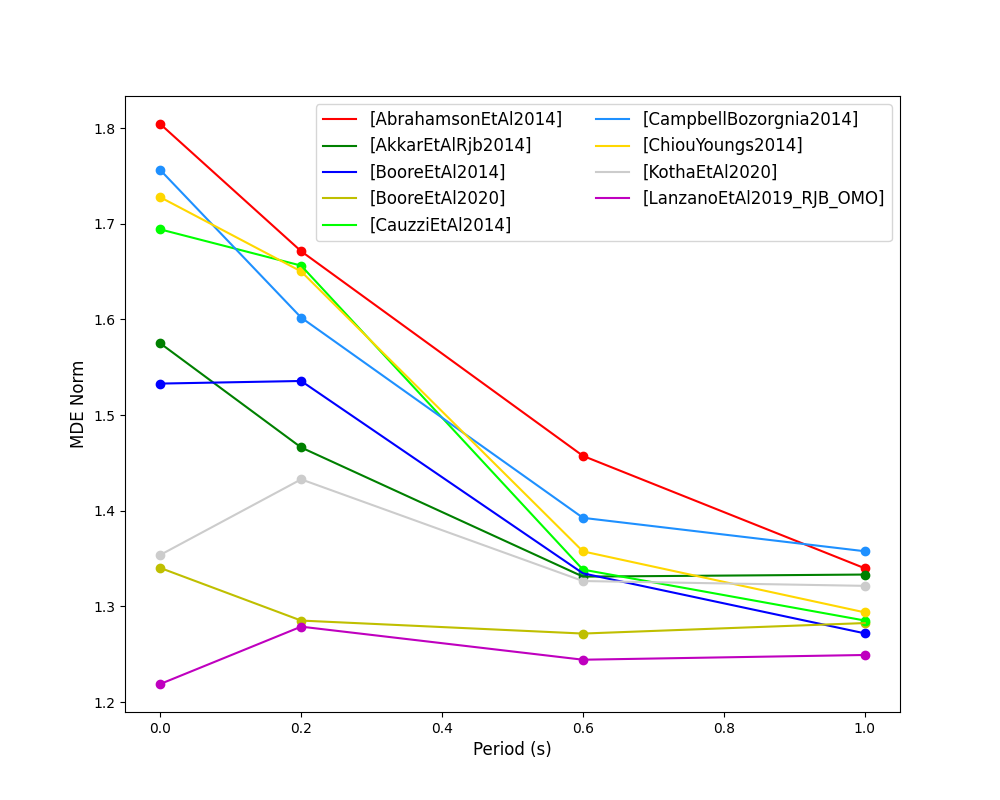

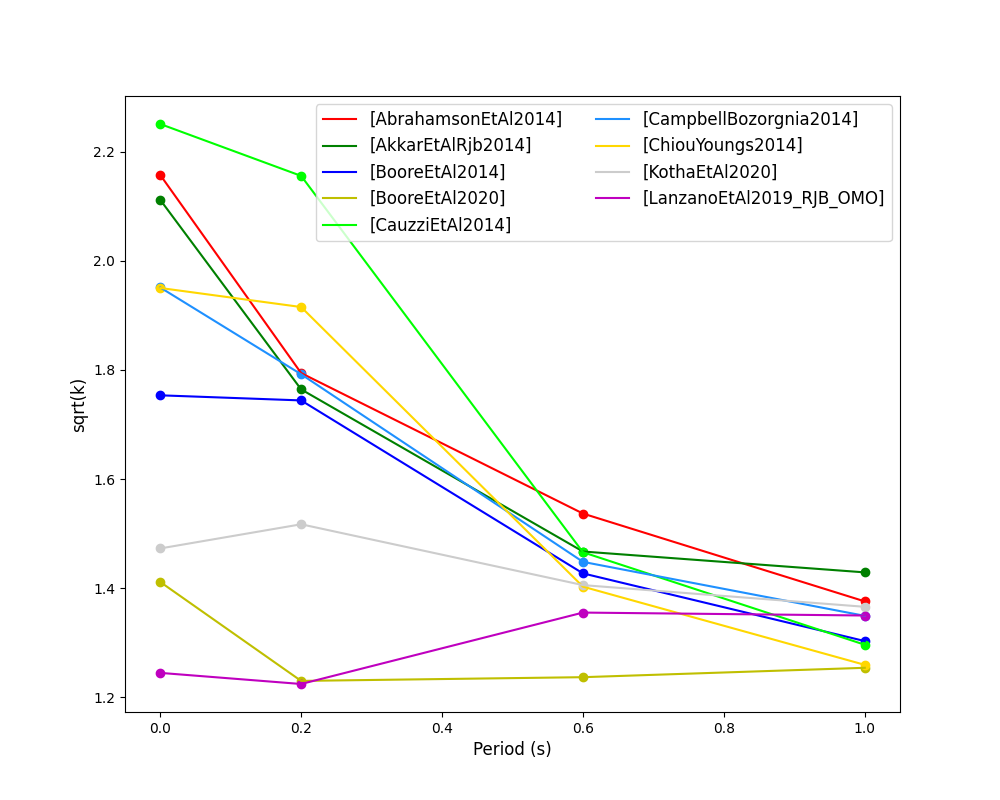

> # Plot EDR score, MDE norm and sqrt(k) vs IMT
> rspl.plot_plot_edr_metrics_with_spectral_period(resid, filename)

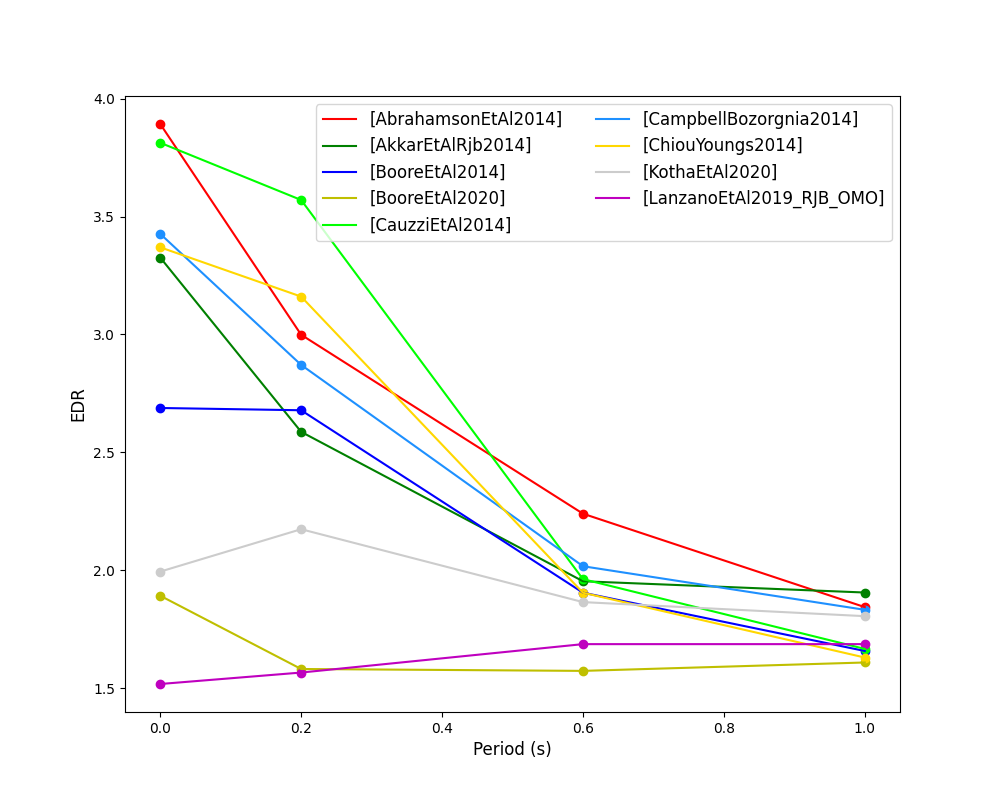

EDR rank versus spectral period plot for considered GMPEs:
../_images/all_gmpes_EDR_plot_EDR_value.jpg
EDR correction factor versus spectral period for considered GMPEs:
../_images/all_gmpes_EDR_plot_EDR_correction_factor.jpg
MDE versus spectral period for considered GMPEs:
../_images/all_gmpes_EDR_plot_MDE.jpg

Stochastic Area Based Ranking (Sunny et al. 2021)

The stochastic area ranking metric considers the absolute difference between the integrals of the cumulative distribution function of the GMPE and the empirical distribution function of the observations. A smaller value is representative of a better fit between the GMPE and the observed ground-motions.

> # Get stochastic area metric per GMPE and per IMT
> res.get_stochastic_area_wrt_imt(resid)
>
> # Generate a CSV table of stochastic area values per GMPE and per IMT
> rspl.stochastic_area_table(resid, filename)
>
> # Generate a CSV table of stochastic area-based model weights for GMPE logic tree
> rspl.stochastic_area_weights_table(resid, filename)
>
> # Plot stochastic area vs IMT
> rspl.plot_stochastic_area_with_spectral_period(resid, filename)

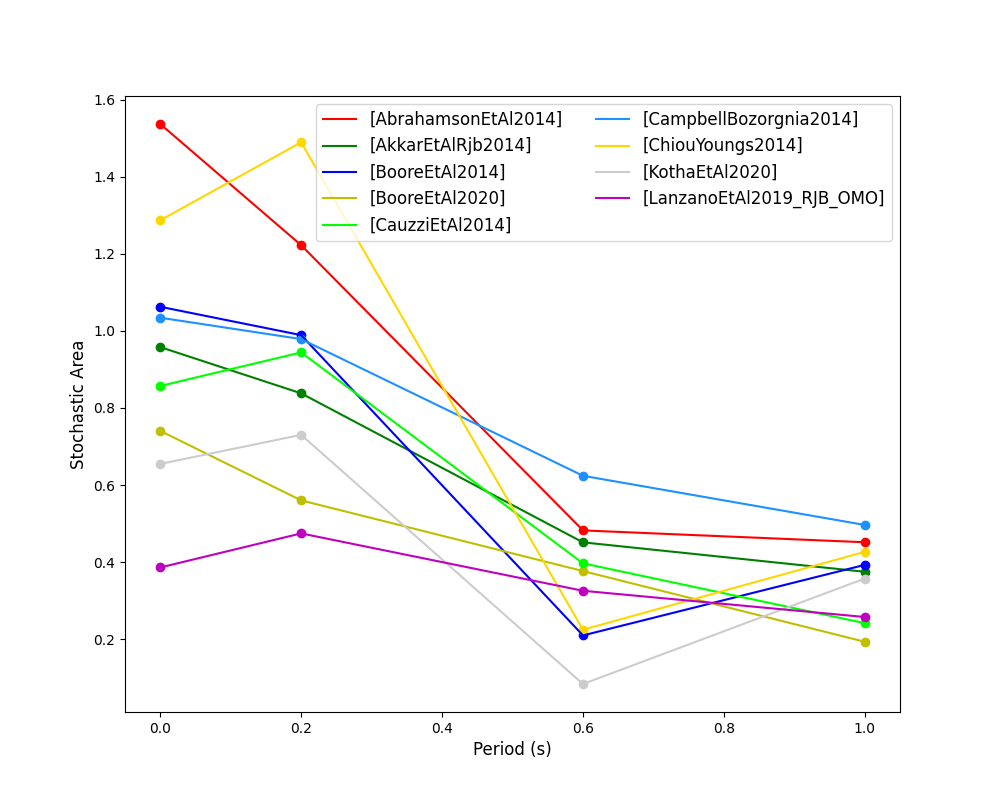

Stochastic area versus spectral period plot for considered GMPEs:
../_images/all_gmpes_stochastic_area_plot.jpg

Comparing GMPEs

  1. Alongside the smt’s capabilities for evaluating GMPEs in terms of residuals, we can also compare the behaviours of GMPEs for a given set of highly customisable earthquake scenarios using the tools within the Comparison module. The tools within the Comparison module includes plotting capabilities for response spectra and attenuation curves (trellis plots), as well as methods for considering the similarities of GMPE predictions in Euclidean space (i.e. distances) such as Sammon’s Maps and hierarchical clustering dendrogram plots. These tools are highly useful for better understanding the behaviours of GMMs in ground-shaking scenarios of interest to a specific region and tectonic region type, These scenarios could potentially be identified from a disaggregation analysis for some sites of interest within a PSHA. Therefore, such tools can be used to help further inform the construction of a GMC logic tree using some GMPEs identified as being potentially suitable for application to a given region and tectonic region type from a residual analysis.

    > # Import GMPE comparison tools
    > from openquake.smt.comparison import compare_gmpes as comp

  2. The inputs for these comparitive tools must be specified within a single .toml file as provided below. GMPE parameters can be specified in the same way as within residual analysis input .toml file. To plot a GMPE logic tree we must assign model weights using lt_weight_gmc1 or ‘lt_weight_gmc2 in each GMPE depending on which GMC logic tree we wish to include the GMPE within (up to 4 GMC logic trees can currently be plotted within one analysis). To plot only the final logic tree and not the individual GMPEs comprising it, we use lt_weight_gmc1_plot_lt_only instead (depending on which GMC we wish to not plot the individual GMPEs for - see the .toml file below for an example of these potential configurations).

    In the comparison module .toml file the user must specify the source parameters (here compressional thrust faulting, Mw 5 to Mw 7), site parameters (e.g. vs30), and some GMPEs to evaluate in the specified ground-shaking scenarios.

    The Comparison module leverages the OpenQuake Engine to construct a finite rupture from the provided source information in the .toml file, which ensures the distance metrics required for a given GMPE (e.g. rrup, rjb) are always available when computing the ground-motions in the given ground-shaking scenario.

    [general]
    imt_list = ['PGA', 'SA(0.1)', 'SA(0.5)', 'SA(1.0)'] # IMTs to compute attenuation curves for
    max_period = 2 # Max period for response spectra (capped by max period in GMMs)
    minR = 0 # Min dist. used in trellis, Sammon's, clusters and matrix plots
    maxR = 300 # Max dist. used in trellis, Sammon's, clusters and matrix plots
    dist_type = 'repi' # or rjb, rrup or rhypo (dist type used in trellis plots)
    dist_list = [10, 100, 250] # distance intervals for use in spectra plots
    Nstd = 1 # Truncation for GMM sigma distribution

    # Specify site properties

    [site_properties]
    vs30 = 800
    Z1 = -999   # If -999 compute from Vs30 using Chiou and Youngs (2014) relationship
    Z25 = -999  # If -999 compute from Vs30 using Campbell and Bozorgnia (2014) relationship
    up_or_down_dip = 1 # 1 = up-dip, 0 = down-dip
    z_basin_region = 'Global' # Obtain z1pt0/z2pt5 from "Global" or "JPN" (Japan) empirical relationships
    volc_back_arc = false # true or false
    eshm20_region = 0 # Residual attenuation cluster to use for KothaEtAl2020ESHM20

    # Characterise earthquake for the region of interest as finite rupture
    [source_properties]
    trt = 'None' # Either string of 'None' to use user-provided aratio OR specify a
                 # TRT string from ASCR, InSlab, Interface, Stable, Upper_Mantle,
                 # Volcanic, Induced, Induced_Geothermal to assign a trt-dependent
                 # proxy aratio
    ztor = 'None' # Set to string of 'None' to NOT consider otherwise specify as
                  # array matching number of mag and depth values
    strike = -999
    dip =  60
    rake = 90 # Must be provided. Strike and dip can be approximated if either
              # set to -999
    aratio  = 2 # If set to -999 the user-provided trt string will be used
                # to assign a trt-dependent aratio
    mags = [5, 6, 7] # Mags used only for trellis and response spectra
    depths = [20, 20, 20] # Depth per magnitude for trellis and response spectra

    # Specify mags and depths for Sammons, Euclidean dist and Agglomerative clustering
    [source_properties_euclidean_analysis]
    mmin = 5
    mmax = 7
    spacing = 0.1
    depths_for_euclidean = [[5, 20], [6, 20], [7, 20]] # [[mag, depth], [mag, depth], [mag, depth]]

    # Specify label for gmpes
    [gmpe_labels]
    gmpes_label = ['B20', 'L19', 'K1', 'K2', 'K3', 'K4', 'K5', 'CA15', 'AK14']

    # Specify gmpes

    # Plot logic tree and individual GMPEs within first GMC logic tree config (gmc1)
    [models.BooreEtAl2020]
    lt_weight_gmc1 = 0.30

    [models.LanzanoEtAl2019_RJB_OMO]
    lt_weight_gmc1 = 0.40

    # Default ESHM20 logic tree branches considered in gmc1
    [models.1-KothaEtAl2020ESHM20]
    lt_weight_gmc1 = 0.000862
    sigma_mu_epsilon = 2.85697
    c3_epsilon = 1.72
    [models.2-KothaEtAl2020ESHM20]
    lt_weight_gmc1 = 0.067767
    sigma_mu_epsilon = 1.35563
    c3_epsilon = 0
    [models.3-KothaEtAl2020ESHM20]
    lt_weight_gmc1 = 0.162742
    sigma_mu_epsilon = 0
    c3_epsilon = 0
    [models.4-KothaEtAl2020ESHM20]
    lt_weight_gmc1 = 0.067767
    sigma_mu_epsilon = -1.35563
    c3_epsilon = 0
    [models.5-KothaEtAl2020ESHM20]
    lt_weight_gmc1 = 0.000862
    sigma_mu_epsilon = -2.85697
    c3_epsilon = -1.72

    # Plot logic tree only for a second GMC logic tree config (gmc2)
    [models.CauzziEtAl2014]
    lt_weight_gmc2_plot_lt_only = 0.50

    [models.AkkarEtAlRjb2014]
    lt_weight_gmc2_plot_lt_only = 0.50

    # Also specify a GMPE to compute ratios of the attenuation against (GMPE/baseline)
    [ratios_baseline_gmm.BooreEtAl2020]

    [custom_colors]
    custom_colors_flag = 'False' # Set to "True" for custom colours in plots
    custom_colors_list = ['lime', 'dodgerblue', 'gold', '0.8']

  3. Trellis Plots

    We can generate trellis plots (predicted ground-motion by each considered GMPE versus distance) for different magnitudes and intensity measures (specified in the .toml file).

    Note that filename (both for trellis plotting and in the subsequently demonstrated comparison module plotting functions) is the path to the input .toml file. The attenuation curves for a given run configuration can be exported into a CSV as demonstrated within the Comparison module demo (openquake\smt\demos\demo_comparison.py). The user can then compare attenuation curves and other derivative plots (e.g. response spectra) for varying site conditions by comparing values extracted from these CSVs (i.e. one CSV per run configuration - each with different site conditions but same event parameters).

    > # Generate trellis plots
    > comp.plot_trellis(filename, output_directory)

    Trellis plots for input parameters specified in toml file:
    ../_images/TrellisPlots.png
  4. Spectra Plots

    We can also plot response spectra:

    > # Generate spectra plots
    > comp.plot_spectra(filename, output_directory)

    Response spectra plots for input parameters specified in toml file:
    ../_images/ResponseSpectra.png

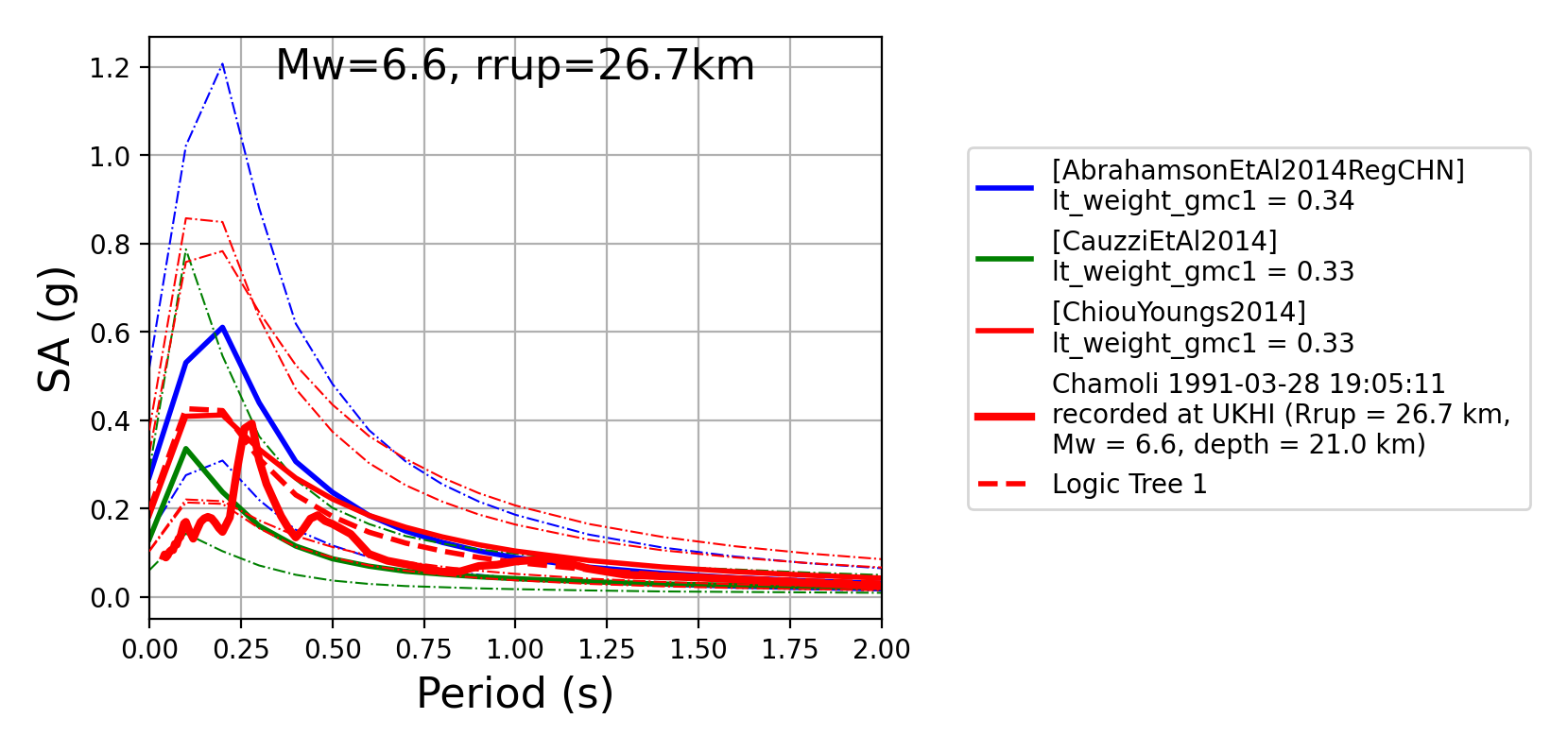

  5. Plot of Spectra from a Record

    The spectra of a processed record can also be plotted along with predictions by the selected GMPEs for the same ground-shaking scenario. An example of the input for the record spectra is provided in the demo files:

    > # Generate plot of observed spectra and predictions by GMPEs
    > comp.plot_spectra(filename, output_directory, obs_spectra='spectra_chamoli_1991_station_UKHI.csv')

    Response spectra plots for input parameters specified in toml file:
    ../_images/ObsSpectra.png
  6. Plot of ratios of attenuation curves

    The ratios of the median predictions from each GMPE and a baseline GMPE (specified in the .toml - see above) can also be plotted. An example is provided in the demo files:

    > # Plot ratios of median attenuation curves for each GMPE/median attenuation curves for baseline GMPE
    > comp.plot_ratios(filename, output_directory)

    Ratio plots for input parameters specified in toml file (note that here the baseline GMPE is BooreEtAl2014):
    ../_images/RatioPlots.png
  7. Sammon’s Maps

    We can plot Sammon’s Maps to examine how similar the medians (and 16th and 84th percentiles) of predicted ground-motion of each GMPE are (see Sammon, 1969 and Scherbaum et al. 2010 for more details on the Sammon’s mapping procedure).

    A larger distance between two plotted GMPEs represents a greater difference in the predicted ground-motion. It should be noted that: (1) more than one 2D configuration can exist for a given set of GMPEs and (2) that the absolute numbers on the axes do not have a physical meaning.

    Sammon’s Maps can be generated as follows:

    > # Generate Sammon's Maps
    > comp.plot_sammons(filename, output_directory)

    Sammon’s Maps (median predicted ground-motion) for input parameters specified in toml file:
    ../_images/Median_SammonMaps.png
  8. Hierarchical Clustering

    Dendrograms can be plotted as an alternative tool to evaluate how similarly the predicted ground-motion is by each GMPE.

    Within the dendrograms the GMPEs are clustered hierarchically (i.e. the GMPEs which are clustered together at shorter Euclidean distances are more similar than those clustered together at larger Euclidean distances).

    Hierarchical clustering plots can be generated as follows:

    > # Generate dendrograms
    > comp.plot_cluster(filename, output_directory)

    Dendrograms (median predicted ground-motion) for input parameters specified in toml file:
    ../_images/Median_Clustering.png
  9. Matrix Plots of Euclidean Distance

    In addition to Sammon’s Maps and hierarchical clustering, we can also plot the Euclidean distance between the predicted ground-motions by each GMPE in a matrix plot.

    Within the matrix plots the darker cells represent a smaller Euclidean distance (and therefore greater similarity) between each GMPE for the given intensity measure.

    Matrix plots of Euclidean distance can be generated as follows:

    > # Generate matrix plots of Euclidean distance
    > comp.plot_euclidean(filename, output_directory)

    Matrix plots of Euclidean distance between GMPEs (median predicted ground-motion) for input parameters specified in toml file:
    ../_images/Median_Euclidean.png
  10. Using ModifiableGMPE to modify GMPEs within a .toml.

In addition to specifying predefined arguments for each GMPE, the user can also modify GMPEs using ModifiableGMPE (found in oq-engine\openquake\hazardlib\gsim\mgmpe\modifiable_gmpe.py).

Using the capabilities of this GMPE class we can modify GMPEs in various ways, including scaling the median and/or sigma by either a scalar or a vector (different scalar per IMT), set a fixed total GMPE sigma, partition the GMPE sigma using a ratio and using a different sigma model or site amplification model than those provided by a GMPE by default.

Some examples of how the ModifiableGMPE can be used within the comparison module input .toml when specifying GMPEs is provided below (please note that ModifiableGMPE is not currently implemented to be usable within the residuals input .toml, although such an application of ModifiableGMPE is not appropriate anyway given within a residual analysis we should evaluate the “base” GMPEs without such modifications):

[models.0-ModifiableGMPE]
gmpe = 'YenierAtkinson2015BSSA'
sigma_model = 'al_atik_2015_sigma' # Use Al Atik (2015) sigma model

[models.1-ModifiableGMPE]
gmpe = 'CampbellBozorgnia2014'
fix_total_sigma = "{'PGA': 0.750, 'SA(0.1)': 0.800, 'SA(0.5)': 0.850}" # Fix total sigma per IMT

[models.2-ModifiableGMPE]
gmpe = 'CampbellBozorgnia2014'
with_betw_ratio = 1.7 # Add between-event and within-event sigma using
                      # ratio of 1.7 to partition total sigma

[models.3-ModifiableGMPE]
gmpe = 'CampbellBozorgnia2014'
set_between_epsilon = 0.5 # Shift the mean with formula mean --> mean + epsilon_tau * between event

[models.4-ModifiableGMPE]
gmpe = 'CampbellBozorgnia2014'
add_delta_sigma_to_total_sigma = 0.5 # Add a delta to the total GMPE sigma

[models.5-ModifiableGMPE]
gmpe = 'CampbellBozorgnia2014'
set_total_sigma_as_tau_plus_delta = 0.5 # Set total sigma to square root of (tau**2 + delta**2)

[models.6-ModifiableGMPE]
gmpe = 'ChiouYoungs2014'
median_scaling_scalar = 1.4 # Scale median by factor of 1.4 over all IMTs

[models.7-ModifiableGMPE]
gmpe = 'ChiouYoungs2014'
median_scaling_vector = "{'PGA': 1.10, 'SA(0.1)': 1.15, 'SA(0.5)': 1.20}" # Scale median by imt-dependent factor

[models.8-ModifiableGMPE]
gmpe = 'KothaEtAl2020'
sigma_scaling_scalar = 1.25 # Scale sigma by factor of 1.25 over all IMTs

[models.9-ModifiableGMPE]
gmpe = 'KothaEtAl2020'
sigma_scaling_vector = "{'PGA': 1.20, 'SA(0.1)': 1.15, 'SA(0.5)': 1.10}" # Scale sigma by IMT-dependent factor

[models.10-ModifiableGMPE]
gmpe = 'AtkinsonMacias2009'
site_term = 'BA08SiteTerm' # use BA08 site term

[models.11-ModifiableGMPE]
gmpe = 'BooreEtAl2014'
site_term = 'CY14SiteTerm' # Use CY14 site term

[models.12-ModifiableGMPE]
gmpe = 'BooreEtAl2014'
site_term = 'NRCan15SiteTerm' # Use NRCan15 non-linear site term

[models.13-ModifiableGMPE]
gmpe = 'BooreEtAl2014'
site_term = 'NRCan15SiteTermLinear' # Use NRCan15 linear site term

[models.14-ModifiableGMPE]
gmpe = 'AtkinsonMacias2009'
basin_term = 'CB14BasinTerm' # Apply CB14 basin adjustment

[models.15-ModifiableGMPE]
gmpe = 'KuehnEtAl2020SInter'
basin_term = 'M9BasinTerm' # Apply M9 basin adjustment

References

Abrahamson, N. A. and R. R. Youngs (1992). “A Stable Algorithm for Regression Analysis Using the Random Effects Model”. In: Bulletin of the Seismological Society of America 82(1), pages 505 – 510.

Kale, O and S. Akkar (2013). “A New Procedure for Selecting and Ranking Ground-Motion Prediction Equations (GMPES): The Euclidean Distance-Based Ranking (EDR) Method”. In: Bulletin of the Seismological Society of America 103(2A), pages 1069 – 1084.

Kotha, S. -R., G. Weatherill, and F. Cotton (2020). “A Regionally Adaptable Ground-Motion Model for Shallow Crustal Earthquakes in Europe.” In: Bulletin of Earthquake Engineering 18, pages 4091 – 4125.

Rodriguez-Marek, A., G. A. Montalva, F. Cotton, and F. Bonilla (2011). “Analysis of Single-Station Standard Deviation using the KiK-Net data”. In: Bulletin of the Seismological Society of America 101(3), pages 1242 –1258.

Sammon, J. W. (1969). “A Nonlinear Mapping for Data Structure Analysis.” In: IEEE Transactions on Computers C-18 (no. 5), pages 401 - 409.

Scherbaum, F., F. Cotton, and P. Smit (2004). “On the Use of Response Spectral-Reference Data for the Selection and Ranking of Ground Motion Models for Seismic Hazard Analysis in Regions of Moderate Seismicity: The Case of Rock Motion”. In: Bulletin of the Seismological Society of America 94(6), pages 2164 – 2184.

Scherbaum, F., E. Delavaud, and C. Riggelsen (2009). “Model Selection in Seismic Hazard Analysis: An Information-Theoretic Perspective”. In: Bulletin of the Seismological Society of America 99(6), pages 3234 – 3247.

Scherbaum, F., N. M., Kuehn, M. Ohrnberger and A. Koehler (2010). “Exploring the proximity of ground-motion models using high-dimensional visualization techniques.” In: Earthquake Spectra 26(4), pages 1117 – 1138.

Weatherill G., S. -R. Kotha and F. Cotton. (2020). “A Regionally Adaptable “Scaled Backbone” Ground Motion Logic Tree for Shallow Seismicity in Europe: Application to the 2020 European Seismic Hazard Model.” In: Bulletin of Earthquake Engineering 18, pages 5087 – 5117.
